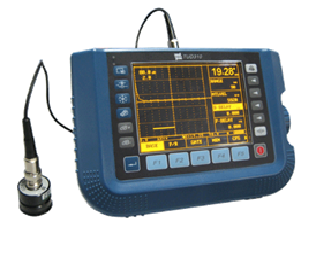

TIME TUD310 超声波探伤仪 (2,5~ 9999 mm)

Technical Specification

Scanning range: 2.5 mm ~9999 mm

Scanning resolution: 0.1mm (2.5mm ~100mm); 1mm (100 mm ~5000mm)

Gain range: 0dB ~110 dB

D-delay: -20µs~+3400µs

P-delay: 0µs~99.99µs, resolution 0.01µs

Sound speed: 1000 m/s~9999m/s

Bandwidth: 0.2MHz~15MHz

( Low0.2~1 Mid.0.5~4 High3~15)

Vertical linearity accuracy: ≤3%

Horizontal linearity accuracy: ≤0.2%

Dynamic range: ≥32dB

Rectification: Positive half wave, negative wave,

full wave, and RF

Sensitivity leavings: ≥60dB

Test mode: Pulse-echo, dual and through transmission

Pulser: Spike excitation pulser

Damping: 50ohms, 150ohms and 400ohms

Reject: Linear, 0-80% of full screen, variable in steps of 1%

Unit: Metric/inch

Interface: RS232 / USB

Printer: EPSOn ink-jet printers

AC requirements: 85-264V AC/1.0A,47-63Hz

Temperature: -10℃~40℃

Humidity: 20%~90%RH

Power supply: Li battery4×3.6V 4000mAh

Charging time: 4~5hours

Dimension (mm): 243×173×70

Weight (g): 1470

Standard Delivery

●Main unit

●Power adaptor

●neck strap

●2 x Cable for probe

●Straight probe(2.5MHz,Ø20)

●Angle probe(5MHz,8×9K2)

●Couplant

●Flash disk

●Screw driver

●TIME certificate

●Warranty card

●Instruction manual

Detail

Datasheet


Optional Accessory

●Connecting cable

●Software for TUD310

●Various probes

●EPSOn ink-jet printer
