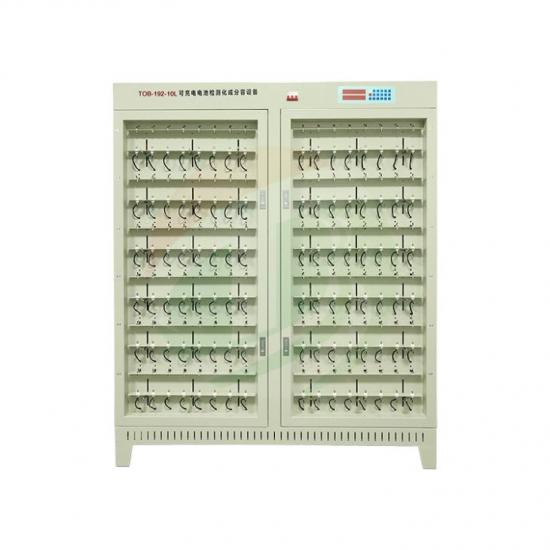

TOB TOB-192-10L电池充电和放电器 (192 频道,5V,10A)

  • 制造商: TOB
    Model: TOB-192-10L
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Channel No.: 192

Workflow control method: Whole Cabin control

Charging model: Constant voltage,constant current

Charge cutoff condition: Voltage, current, time, capacity

Discharge mode: Constant current

Discharge cutoff condition: Voltage, time, capacity

Sampling inspection cycle: ≤6s

Voltage measurement range: 0~5V,Resolution 1mV

Battery voltage range: Charge:0~4.5V,Discharge:4.5~2V

Constant voltage range: 3~4.5V

Voltage accuracy: ±(0.05%RD+0.1%FS)

Current range: Charge:0.05-10A,Discharge :0.05-10A,Resolution:1mA

Current accuracy: ±(0.1%RD+0.1%FS)

Time Set Range: Any setting within 0~30000 minutes, the time unit is min

Time accuracy: ≤±0.1%

Clamp type: Four-wire method fixture

Clamp adjust range: 10mm-125mm

Support battery type: Cylinder cell

Voltage source: 3 phase 4 wire , AC380V±5% , 50HZ , Power consumption15KW

communication method: RS485,Baud rate 57600

Machine size: 1680mm(length)×600mm(width)×1710mm(height

working environment: Temperature:0-40℃,related temperature≤85%

Full load operating current: Phase line up to 18A, zero line up to 30A

Device startup current: Air switch closing moment about 60A

N.W: About 350kg
