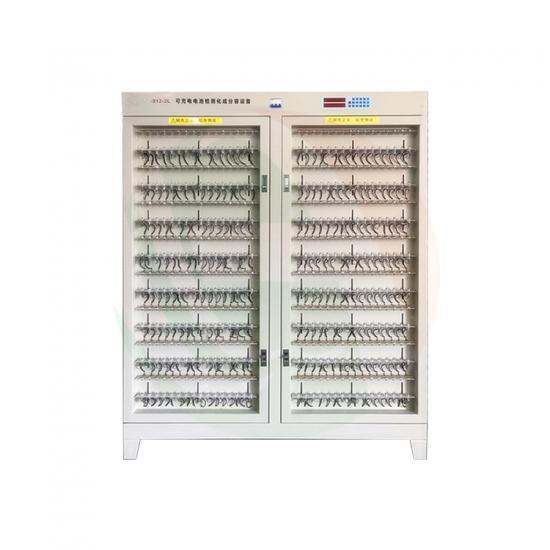

TOB TOB-512-2L Cylinder Battery Cell Forming And Grading Machine For Lithium Ion Battery Testing (512 channels, 5V2A)

Channel No.: 512

Workflow control method: Whole Cabin control

Charging model: Constant voltage,constant current

Charge cutoff condition: Voltage, current, time, capacity

Discharge mode: Constant current

Discharge cutoff condition: Voltage, time, capacity

Sampling inspection cycle: ≤10s

Voltagemeasurement range: 0~5V,Resolution 1mV

Battery voltage range: Charge:0~4.5V,Discharge:4.5~2.5V

Constant voltage range: 3~4.5V

Voltage accuracy: ±(0.05%RD+0.1%FS)

Current range: Charge:0.01-2A,Discharge :0.01-2A,Resolution:1mA

Current accuracy: ±(0.1%RD+0.1%FS)

Time Set Range: Any setting within 0~30000 minutes, the time unit is min

Time accuracy: ≤±0.1%

Clamp type: Four-wire method fixture

Clamp adjust range: 10mm-90mm

Support battery type: Cylinder cell

Voltage source: 3 phase 4 wire,AC380V±5%,50HZ,Power consumption 15KW

Communication method: RS485,Baud rate 57600

Machine size: 1440mm(length)× 500mm(width)× 1840mm(height)

working environment: Temperature:0-40℃,related temperature≤85%

Full load operating current: Phase line up to15A, zero line up to3A

Device startup current: Air switch closing moment about 60A

N.W: About 300kg
