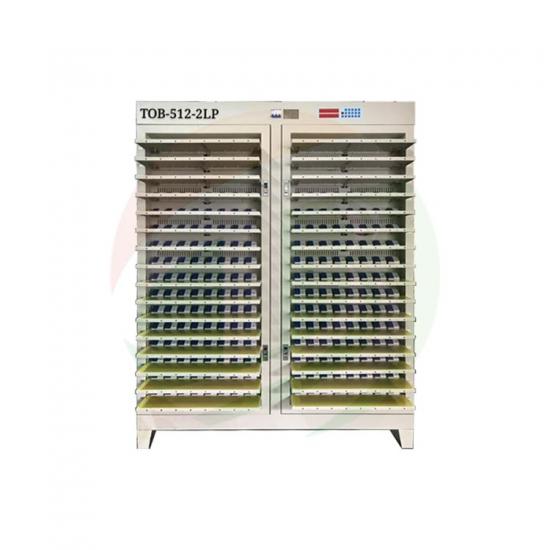

TOB TOB-512-2LP 电池电容监测仪 (512 频道，5V，2A)

Channel No.: 512

Workflow control method: Whole Cabin control

Charging model: Constant voltage,constant current

Charge cutoff condition: Voltage, current, time, capacity

Discharge mode: Constant current

Discharge cutoff condition: Voltage, time, capacity

Sampling inspection cycle: ≤10s

Voltage measurement range: 0~5V，Resolution 1mV

Battery voltage range: Charge：0~4.5V，Discharge：4.5~2.5V

Constant voltage range: 3~4.5V

Voltage accuracy: ±（0.05%RD+0.1%FS）

Current range: Charge:0.01-2A，Discharge :0.01-2A，Resolution:1mA

Current accuracy: ±（0.1%RD+0.1%FS）

Time Set Range: Any setting within 0~30000 minutes, the time unit is min

Time accuracy: ≤±0.1%

Clamp type: Polymer clamp

Clamp adjust range: 70mm

Support battery type: Pouch cell

Voltage source: 3 phase 4 wire ， AC380V±5% ， 50HZ ， Power consumption9.5KW

Communication method: RS485，Baud rate 57600

Machine size: 1440mm（length）×500mm（width）×1840mm（height

working environment: Temperature：0-40℃，related temperature≤85%

Full load operating current: Phase line up to 15A, zero line up to 3A

Device startup current: Air switch closing moment about 60A

N.W: Anout 350kg
