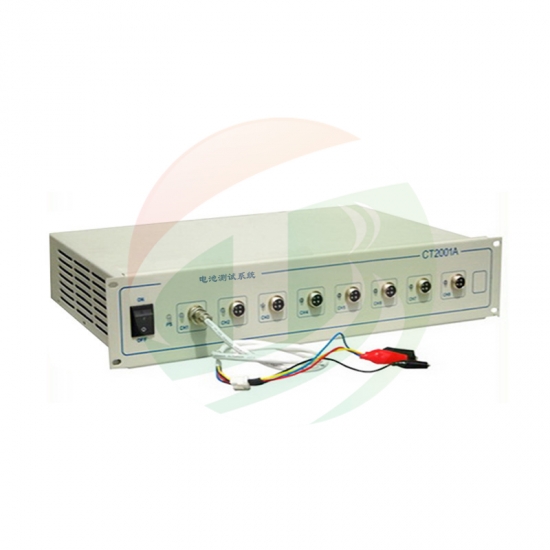

TOB TOB-5V10mA 电池试验机 (0.1-10mA, 5V)
制造商: TOB Model: TOB-5V10mA 来源: China 保障: 12 Month - 报价要求
- 联系
Source voltage: 110v to 220v 50/60HZ
Power: 30W
Current range: 0-10mA 0.05%RD±0.1%FS (control and measurement)
Voltage range: 0-5V 0.1%RD±0.1%FS (control and measurement)
Cycles: 9999cycles
Contents of step: Constant current c/d , constant voltage c/d, constant power discharge, constant resistance discharge, DCIR,rest
Conditions of constraint: Time, voltage, current, capacity, etc.20 kinds
Protection modes: Overvoltage, under voltage, over current, under current, over capacity, etc.
Programming steps: Unlimited (more than 200 steps)
Channels
Eight independent programmable channels
Each channel can set different working modes and functions independently
Output mode: 4 electrode (supporting reference electrode test)
Dimension: 250*200*60mm
Weight: 12kg
