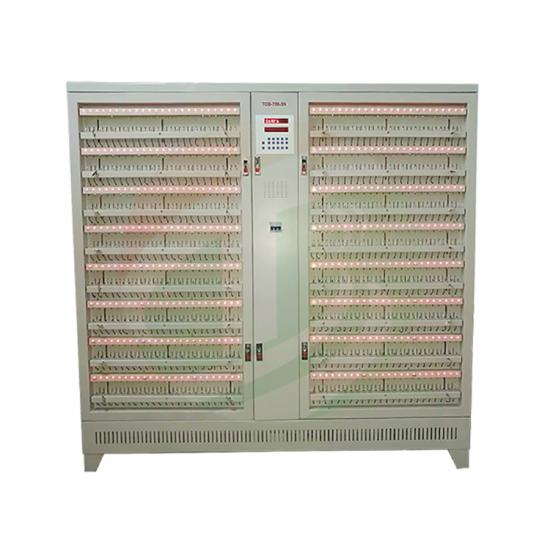

TOB TOB-768-3N 电池尺寸和样子分类器 (768 channels, 1.8V)
制造商: TOB Model: TOB-768-3N 来源: China 保障: 12 Month - 报价要求
- 联系
Channels per unit: There are 96 groups, 8 channels in each group and 768 channels in the whole machine.
Constant current range: 0.015~3A, Resolution 1mA
Sampling interval: ≤8 seconds
Current setting accuracy: ±(0.1%RD+0.1%FS)
Accuracy of current measurement: ±(0.1%RD+0.1%FS)
Voltage measurement range: 0~2V, resolution 1mV
Accuracy of voltage measurement: ±(0.2%RD+0.1%FS)
Voltage range of tested battery: 0~1.8V
Time range: 0-999 minutes/step, accuracy: ±0.1%
Dimension: L1720 x W500 x H1840mm
Communication mode: RS485, baud rate 57600
Supporting battery type: Single Ni-MH battery or Cd-Ni battery
Clamp type: Two-wire clamp
Supporting battery height: 10-80mm, adjustable
Distance between clamps: 30mm
Working power supply: Three-phase four-wire system, AC380V±5%, 50HZ, 7KW
Full load working current: Phase line maximum 7.5A, zero line maximum 15A
Start-up current of equipment: The instantaneous closing time of air switch is about 60A
Weight: About 300kg
