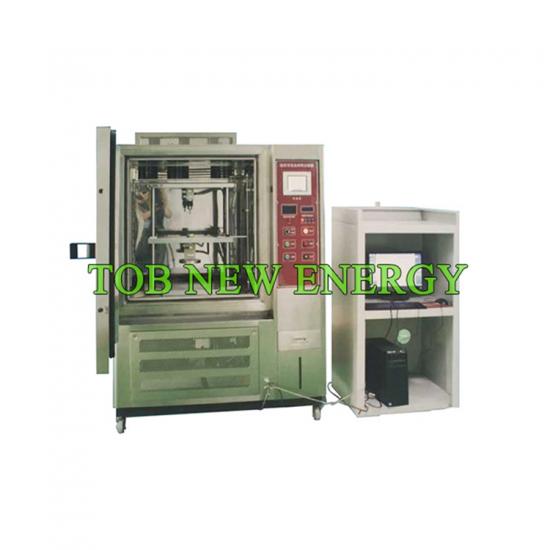

TOB TOB-BE-IS Battery Internal Short-Circuit Integrated Testing Machine

  • 制造商: TOB
    Model: TOB-BE-IS
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




1.Temperature control box technical specifications

Temperature range: 0℃~+100℃

Analytical precision: 0.01℃

Temperature fluctuation: ±0.5℃

Temperature uniformity: ±2.0℃

Temperature rising rate: Average 3℃/min(from 0℃ to 100℃、Nonlinear load)

Temperature falling rate: Average 1℃/min(from 1000℃ to 0℃、Nonlinear load)

Within the box size: W600*H750*D500MM

Within the box material: Mirror stainless steel plate,the bottom reinforcement

Carton size: W1500*H1750*D1000MM

Carton Material: Stainless steel or cold rolled steel paint treatment


2.Shield prick test specifications

Max load: 200kg

Force value resolution: 1/10000

Force accuracy: ≤0.5%

Force value magnification: 1/1000

Displacement resolution: 7-speed automatic switch

Displacement accuracy: ≤0.5%

Shield thorn: 10*10MM

Speed Range: 0.01~20MM/S

Effective stroke: 150MM(Without holder)

Test largest plane: 300*300MM(Customized)


3.Voltage data collection

Voltage data collection range: 0~20V,Acquisition frequency 100HZ/S

Voltage resolution: 1MV

Stop voltage range can be set: 0~20V
