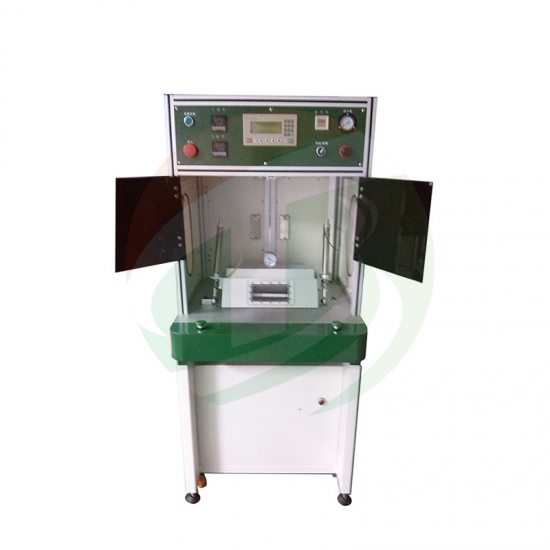

TOB TOB-BFZ-200 Vacuum Sealing Machine For Pouch Cell Final Sealing (50W,-90Kpa - 0)

Source voltage: AC 220V/110V, 50/60HZ

Power: 50W

Vacuum degree: -90Kpa - 0

Sealing head TEM: RT-250℃, adjustable

TEM accuracy: ±1.5℃

Sealing pressure: 0-7Kg/cm2, adjustable

Sealing time: 0-99s, adjustable

Sealing width: 5mm, customized

Sealing head length: 200mm

Air source: 0.5-0.7MPa (72.5-102psi)

Dimension(L*W*H): 600*500*1700mm

Weight: About 200kg




1. Sealing Head adopts copper material, good heat transfer effect,

2. With automatic needle function, waste liquid recycling equipment.

3. Can apply to different specifications battery,  and the adjusting easily
