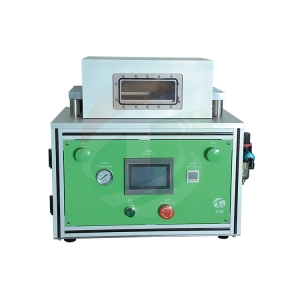

TOB TOB-BFZ200 Battery Secondary Vacuum Heat Sealing Machine For Pouch Cell (50W, -90Kpa ~ 0)

  • 制造商: TOB
    Model: TOB-BFZ200
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Cavity made of aluminum alloy, corrosion-resistant, solid structure

Vacuum up to-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump)

Head temperature: RT ~ 250 ℃, temperature adjustable

Temperature control accuracy: ± 1.5 ℃

Heat sealing pressure: 0 ~ 7Kg / cm2 adjustable

Sealing time: 0 ~ 99 seconds adjustable

Edge width: 5mm (according to customer requirements)

The maximum edge size: 200mm

Head parallelism: with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal

Air consumption: about 0.2L compressed gas / each time

Pneumatic working speed: ≥ 180 times / h

Power: 300w heat pipe, heating when the power consumption of about 0.6KW

Power supply: 220V / 50Hz

Power: 50W

Compressed air source: 0.5 ~ 0.7Mpa

Dimension Working Department: 520mm * 350mm * 650mm
