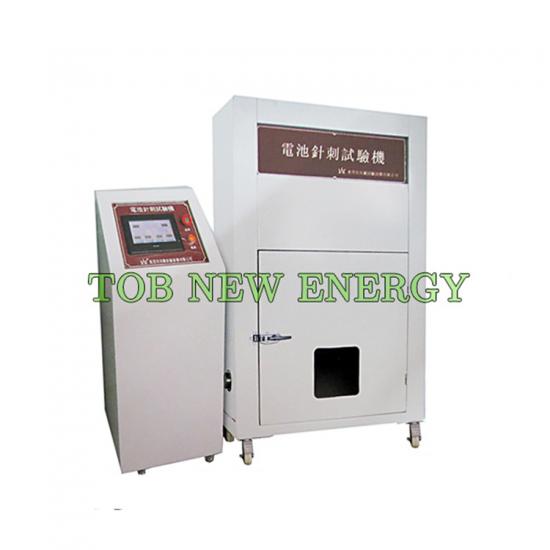

TOB TOB-BNT-9002 电池打钉试验机

Dimension: 900*1460*500mm

Weight: 150kg

Controller dimension: 330*1040*330mm

View window dimension: 200*200mm, 10mm thickness Double explosion-proof glass

Source voltage: AC 110V/220V, 50HZ

Needling mode: Pneumatic

Needing force: 150-200kg,±1% accuracy

Max testing size: 200*200*200, adjustable

High temperature resistant steel needle: φ3mm and φ8mm

Needling height: 150mm

Needling speed

10-40mm/s, adjustable,

Through the perpendicular to the battery plate direction pierce the battery,

stop (1min~6hour) automatically from a battery pull, easy disassembly.

Anti explosion case: Bottom is provided with four universal wheels, and can move freely

Exhaust fan port: 15mm diameter
