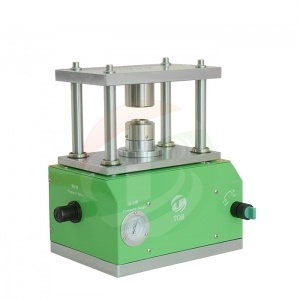

TOB TOB-BQ-150 气动纽扣币形压接机 (0.7mpa)
制造商: TOB Model: TOB-BQ-150 来源: China 保障: 12 Month - 报价要求
- 联系
Gas source: 0.6~0. 8 mpa argon, nitrogen cylinders, or compressed air(Not suggest to use compressed air in glove box)
Exhaust design: Specially designed exhaust port, can external via connected by kf40 and other devices
Gas consumption: The gas consumption of single seal is about 480 ml
Crimping pressure
Manual control valve, maximum pressure 1mpa
Recommended pressure 0.7mpa
Accuracy ± 0.5%
Crimping stroke: 30mm
Crimping die: Standard crimping die is CR20xx, with optional die sets
Disassembling die: Optional or added various specifications such as CR16, CR20, CR24,CR30, etc.
Machine size: L290mm * W205mm * H330mm
Net Weight: 25Kg
Structural material: High strength chromium steel, the surface after environmental plating and spray treatment will never rust.
Remark: With the function of preventing short circuit of battery crimping
