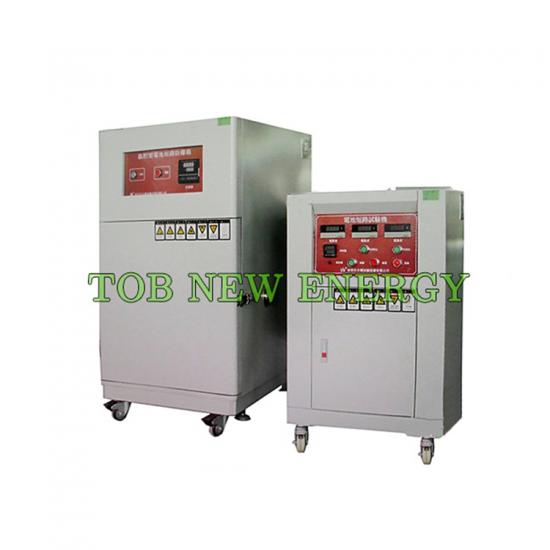

TOB TOB-BSCT-TC 电池短路试验机 (0-70℃)

Source voltage: AC 220V, 50HZ

Power: 3000W

Short-circuit tester dimension: 600*800*970mm

Thermostatic explosion-proof box : 500*550*500mm

Weight: 220kg

Short-circuit current: 1000A

DC response time : Less than 5us

Resistance: Less than 5mΩ, customized

Remote-controlled distance: 7M No barrier

Temperature range: 0-70℃, adjustable

Temperature fluctuation: ±1℃

Temperature error: ±2℃

Short-circuit time: 1-9999s can be set

Anti explosion case: Bottom is provided with four universal wheels, and can move freely
