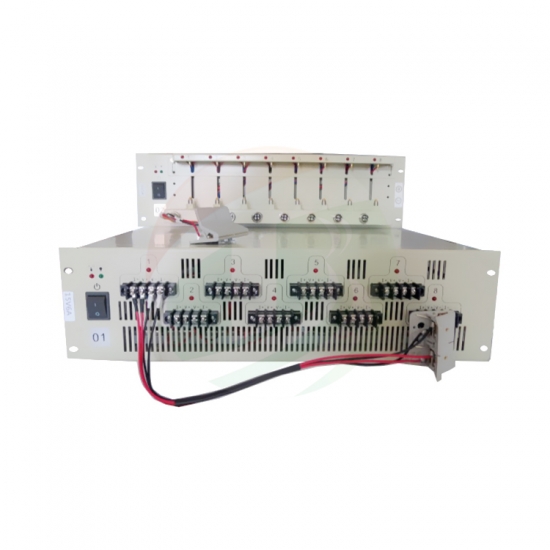

TOB TOB-BTS-15V6A Battery Pack Test System (12mA~6000mA,15V)

  • 制造商: TOB
    Model: TOB-BTS-15V6A
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Source voltage: AC110V-220V±10% Customized,  50/60HZ

Input impedance : ≥1MΩ

Input power: 1088W

Channel Characteristics : Constant current source and voltage source adopt double closed loop independent structure

Channel control mode: Independent control

Voltage range per channel

Charge : 3mV-15V  Discharge : 2.5V-15V

Accuracy : ±0.1%

Current range per channel

Charge : 12mA-6A  Discharge : 12mA-6A

Accuracy : ±0.1%

Output power per channel: 200W

Time

Current response time : 0-6A : 20ms

Step time range: 1s-365*24h,Time format : 00:00:00(H:Min:S)

Record condition

TimeΔt :1-60000s  VoltageΔU : 40mV-20V

CurrentΔI : 20mA-10A

Charging mode: Constant current charge, constant voltage charge, constant current and voltage charge

Discharging mode: Constant current discharge,constant power discharge

Conditions of constraint: Time, voltage, current, capacity

Cycle

Cycle range: 1-65535 times

Steps pur cycle: 254

Protection : Power-down data protection,off-line test function and Safety condition setting protection

Voice : ≤85dB

Communication interface: Serial ports

Channel number per unit: 8

Dimension(L*W*H): 485*508*263mm

Working temperature/humidity: -10-40℃   ≤70%RH
