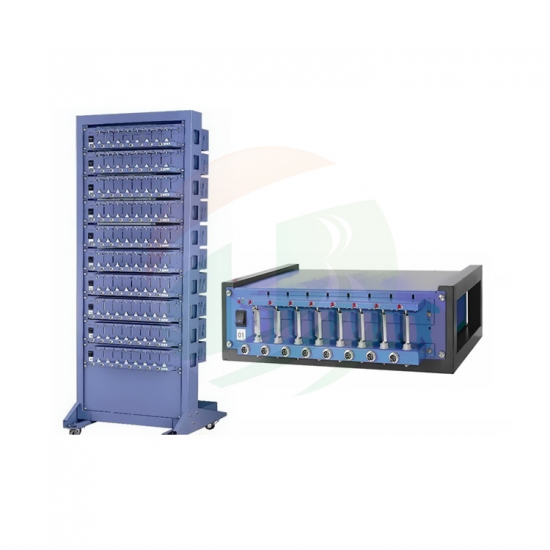

TOB TOB-BTS-5V2A High Precision Battery Testing Machine (1mA~1000A, 2V~500V)

Input Power:  220 V ±10%  / 50 Hz

Current output range:  ±2200mA

Voltage measuring range:  5V

Input impedance:  ≥10MΩ

Power:  100W

Current measurement accuracy:  ±(0.2% of reading + 0.1% of range)

Voltage Measurement Accuracy:  ±(0.1% of reading + 0.05% of range

Current / voltage / time resolution:  0.1mA /0.1mV/s

Cyclic measurement range:  1-9999times

Data recording condition:  timeΔt (1 ~900s); VoltageΔV (5-5000mV); Current ΔI (1.5-2200mA)

Connector:  RJ45 network

The number of channels per Unit:  8 point

Volume:  197D x 245W x 60H   (unit:mm)

Weight:  About 10kg
