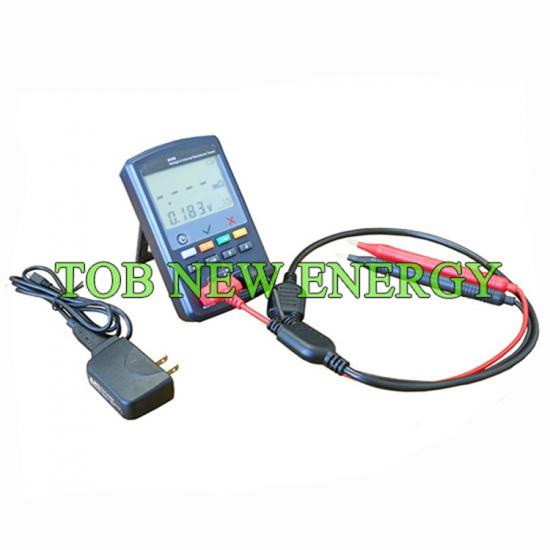

TOB TOB-BVIR 电池内阻/电压测试仪 (0-20V,2000mΩ )

Measuring Method: AC 4 terminals

Voltage

Voltage Measurement: 0~20V

Precision: 0.1%

Resistance

Resistance Measurement: 20mΩ\200mΩ\2000mΩ  Auto/Manual Switch

Precision: 0~200mΩ  1%

201mΩ~2000mΩ 3%

A/D: 12 Digits SAR Comparing

Testing

Sampling Frequency: 1KHz

Sampling Rate: 1000 times/S

Current: < AC 20mA

Response: Refresh 5 times/S

Comparator: On/Off (Manual)

Number of Comparator: 10Sets

Data Storage: 100,000 Entries

Calibration: A 100 mOhm Resistor in Standard Package for Calibration

Dimension W*D*H: 120*75*25(mm)

Weight: 200g

Suggested Environment: 10℃~ 40℃ in temperature and 30% ~ 80% RH in Humidity
