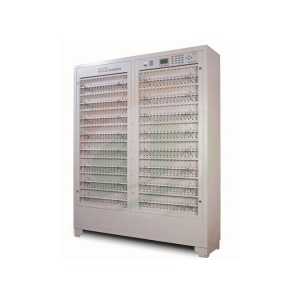

TOB TOB-CG-8512W-5V2A-S1 Cylindrical Battery Formation Charge And Discharge Machine (512 Channels)
制造商: TOB Model: TOB-CG-8512W-5V2A-S1 来源: China 保障: 12 Month - 报价要求
- 联系
Input Power: AC 220V ±10% / 50Hz
Whole power range: 8300W
Voltage
Test Range: 0.8V~4.3V
Accuracy: ±(0.2% of reading + 0.2% of range)
Current
Output range: ±2000mA
Accuracy: ±(0.2% of reading + 0.2% of range)
Constant voltage cutoff current: Min 15mA
Time
Inspection time: Real time<2S
Timing range: 0~9999 min/step
Data Logging Interval: ≥20S
Sorting condition: Termination capacity (time)
Central controller version: 6 series
Charge
Charge Mode: Constant Current Charge、Ni-MH battery charge,lithium ion battery charge
End Condition: Voltage、cutoff current、 Time、Voltage variation
Discharge
Discharge Mode: CCD
End Condition: Voltage、Time
Cycle
Loop Measure Range: 1~9999 times
Single cycle step: 254
Nested Loop: Nested loop Function,Max Support 3 Layers
Protection: Software Protection
Power-down Data Protection
Setting Protection Condition,overvoltage protection, undervoltage protection,overcurrent protection, undercurrent protection,at the mean time protect the voltage and current value can be set.
Voltage and Current Testing Sample: 4-wire connecting
Noise: <85dB
Database: MySQL Database
Communication Interface: Ethernet Port
Per Unit Main Channels No.: 512
Dimensions: W*D*H:1450*380*1780(mm)
Battery clamp type: Upper and lower probe clamp
Battery clamp adjust range: Max 80mm,clamp spacing 34mm
