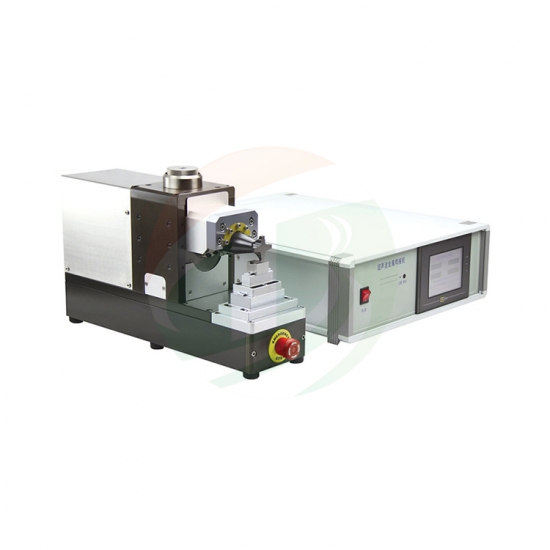

TOB TOB-CX-20DA Ultrasonic Metal Welding Machine (3600W, 20KHZ)

Weight: 45KG

Case size: 480x600x180mm

Rack Dimensions: 150x560x350mm

Power: 220 V (single-phase)

Air supply requirements: ≧ 5 .0kgf / cm²

Operating frequency: 20KHZ (automatic tracking, without adjustment)

Nominal power: 3600W (actual power capacity 4.5KW); maximum pressure: 3000N

Other

1, 5.7 inch touch screen all digital control (including energy, altitude,time of three control modes; pneumatic NC;100 kinds of parameters are stored call is very convenient.);

2, Multiple protection functions (over current, frequency protection),boot automatic detection;

3, Digital stepless amplitude modulation (20~40μm half wave amplitude is continuously adjustable to adapt to a variety of materials and specifications).
