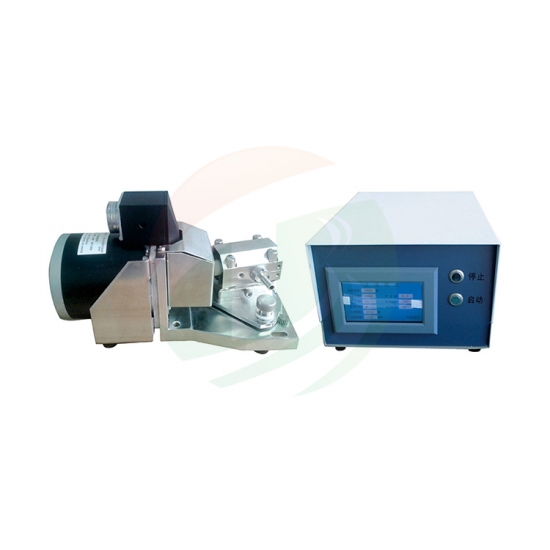

TOB TOB-D1876 单头电动高压泵 (0-1876ul)

  • 制造商: TOB
    Model: TOB-D1876
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Type: Rotating reciprocating positive displacement special ceramic injection pump

Speed (r/min): 18-1000, According to system configuration and fluid characteristics

Stroke number: 1-10000times, According to system configuration and fluid characteristics

Ceramic Pump

Materials: Using nanotechnology and gel injection molding processing and molding technology, the microstructure uniformity, high density

Pump core technology: High precision polishing processing, do not need to seal and lubricating oil

Pump core performance: High temperature resistance, wear resistance, acid and alkali resistance, high hardness and low coefficient of friction

Capacity range:  Single pump, 0-1876ul, Max0-1876 microlitre/one stroke

Ceramic pump sleeve: SUS316 stainless steel

Filling accuracy: Within 5‰

Import and export pipeline: Standard (liquid into the tube diameter 6 mm, outside diameter of 8 mm, tube inner diameter 4 mm, outside diameter 6 mm)

Dimension: 270*120mm*145mm (L*W*H)

Weight: About 2.8kg

Controller Box

Source voltage: AC110V/220V, 50/60HZ Single phase

Power : 200W

Dimension: 290*210*145mm (L*W*H)

Weight: 4.3kg

Standard interface: I/O, RS232, CC TRIG, AUX OUT (optional pedal)

Safety performance: Password protection and factory restore function to ensure setting parameters can not be changed arbitrarily
