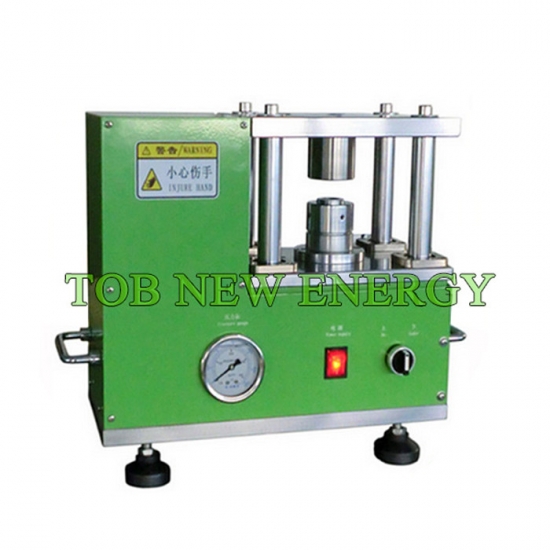

TOB TOB-DF-150 自动电池压缩机 (AC 220V-110V, 50HZ)

Source voltage: AC220V-110V, 50HZ

Power: 120W

Die Set & Compatibility

Assembling dies for CR2016, CR2025 & CR2032 coin cells

Optional: Crimping die for CR2450 coin cell is available upon request

Assembling Pressure

Recommended assembling pressure for CR20XX coin cells is about 100kg/cm2,

Max. pressure can be applied to 200kg/cm2, up to 8T

Measurement Accuracy: ± 0.5%FS

Product Dimensions: 385 * 160 * 325mm

Weight: About 40kg

Application Notes: Electrolytes are highly corrosive materials, and therefore the dies must be cleaned with alcohol after each use to avoid corrosion and deformation.
