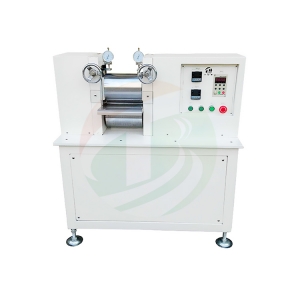

TOB TOB-DR-H150-200 电池电极加热压缩机 (Φ150*200mm, 120℃)

Working Voltage: 110V / 220V AC single phase selectable

Power: 6000W Total

Roller Dimension: 150mm(Dia.) x 200mm(W)

Roller surface hardness: >HRC62

Rolling press accuracy: ≤±0.005

Roller surface finish: 0.8

Roller surface hardening depth: 5mm

Rolling press thickness: 0-3 mm adjusted with Dial gauge

Rolling press width: Max 200mm, Customized

Rolling press speed: 0-6.5 m/min adjustable

Heating temperature: RT-120℃, can customized to 200C

Application Notes: This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.

1, Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2, Coated Rust-proof oil if machine were to be unused for a long period of time

3, The minimum thickness of the rolled sheet should depend on the physical property of the materials.
