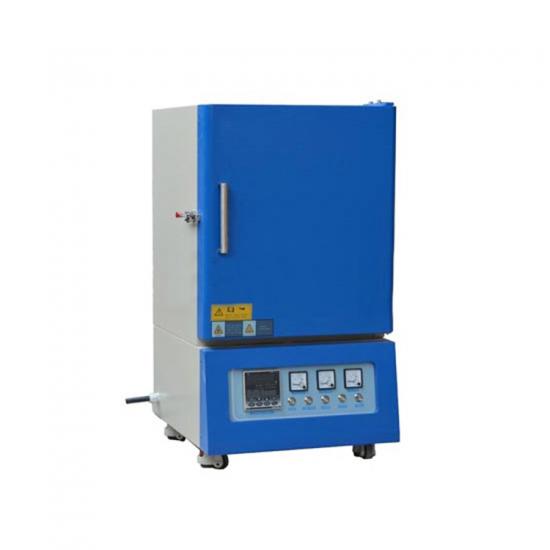

TOB TOB-DSP-KF1700-I 1700 Chamber Furnaces (1700℃,3KW,220V)

Power: 3KW

Furnace tube size(mm): 160X150X150

Dimension: 510X490X850

Power supply voltage: 220V

Phase number: Single-phase

Heating element: 1800 type silicon molybdenum rod

Temperature control mode

1.Yudian temperature control: 30 sections can only use PID temperature regulation.

2.FP93 temperature control (from Japan)

Heating rate: ≤30 ℃ / Min

Recommended heating rate: 15 ℃ / Min

Control accuracy: +/- 1 ℃

Max temperature: 1700 ℃

Rated temperature: 1650 ℃

Thermocouple Type: Type B

Triggers

1.Phase trigger (with soft start and current limiting function)

2.Current limiting function: furnace transformer secondary current through the post is limited to 160A

3.Soft-start function

SCR: 106 / 16E Germany Semikron

Surrounding surface temperature: ≤45℃

Certification: CE
