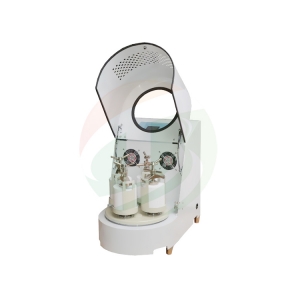

TOB TOB-DSP-LBPBM06C 实验室行星式球磨机 (2L,0～580R/min)

Transmission: Gear transmission

Work: Two or four tanks simultaneously milling

Max sample loading capacity: 2/3 of Tank volume

Discharge size: Mix 0.1um

Feed size: Soil material ≤10mm, other material ≤3mm

Speed ratio (revolution: Rotation)

1：2（0.4L,2L,4）;

1:1.9 (12L);

1:1.5 (20L,60L,100L)

Speed (rotation): 2L：0～580Rev / min

Control method: Frequency variable speed, programmable control, manual, automatic timing reversing, time off

Maximum continuous working time (full load): 48 hours

Milling tank

No.: 4

Specification: 100ml  250ml  500ml

Vacuum ball milling tanks specifications: 100ml     250ml
