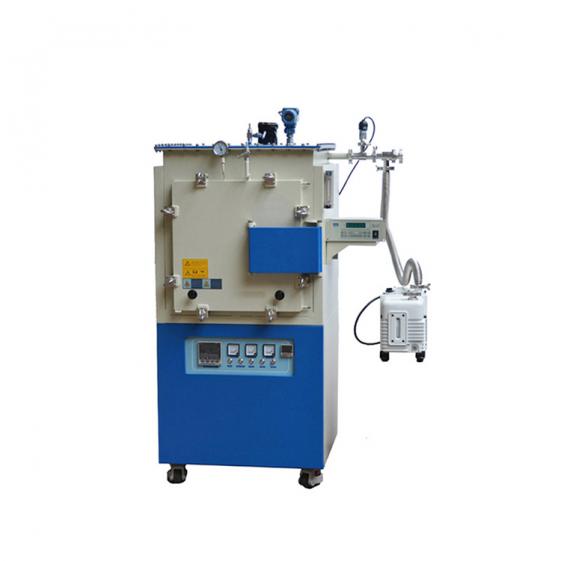

TOB TOB-DSP-VF1400℃-I Vacuum Box Atmosphere Furnace (1400℃,8KW,220V,≤10Pa)

Power: 8KW

Furnace tube size(mm): 300X200X200

Dimension: 600X610X 1440

Power supply voltage: 220V

Phase number: Single-phase

Heating element: Silicon carbon rod

Temperature control mode: FP93 temperature control (from Japan)

Control accuracy: +/- 1 ℃

Triggers: Phase-shift trigger

SCR: 106 / 16E Germany Semikron

Max temperature: 1400℃

Rated temperature: 1350 ℃

Vacuum degree in cold state: ≤10Pa

Heating rate: ≤20 ℃ / Min (available upon request modification)

Recommended heating rate: ≤10 ℃ / Min

Thermocouple Type: Type S

Certification: CE

Surrounding surface temperature: ≤45℃

The max temperature under various atmospheres and vacuum

Atmosphere - Max temperature

Air 1400℃

Vacuum 1100℃

N2 1270℃

H2 1100℃

Hydrocarbon gas 1150℃

Ar 1300℃
