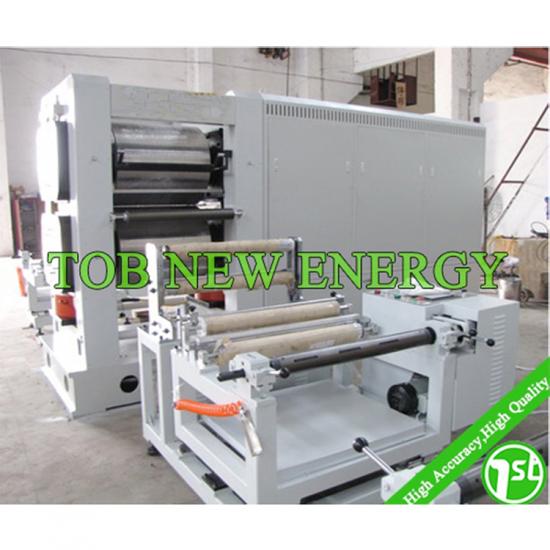

TOB TOB-DYG-703BH-Φ500 液压电池压型器 (520mm宽度)

Source voltage: 380V, 50HZ Or customized

Power: 15KW

Calender roller size: φ500mm×550mm

Roller surface finish: 0.2um

Roller hardness: HRC65-68, The depth of hardening≥18MM

Rolling press speed: 2~11rpm, adjustable

Max work pressure: 500KN-3000KN

Air compressor: 0.5-0.7Mpa, 0.04M3/min

Machine weight: 12T


Rolling press machine : 3100*1300*2070mm

Total dimension : 6000*3100*2070mm

Winding/unwinding parameter

1, Electrode with 76mm diameter size, with biggest electrode diameter 450mm. Width 520mm

2, Tension adjustment : 25N

3, Correction accuracy ≤±0.5mm




1, Electrode rolling press way: adopt clearance and preloading continuous rolling way;

Preloading adopts hydraulic pressure method with the biggest preloading pressure 3000 kn,

using a hydraulic constant pressure, clearance works,

gas liquid pressurization way produce oil pressure;

Clearance adjusting range: 0-2 mm

2, Man-machine interface input adjustment change oil pressure of roller mill roll gap
