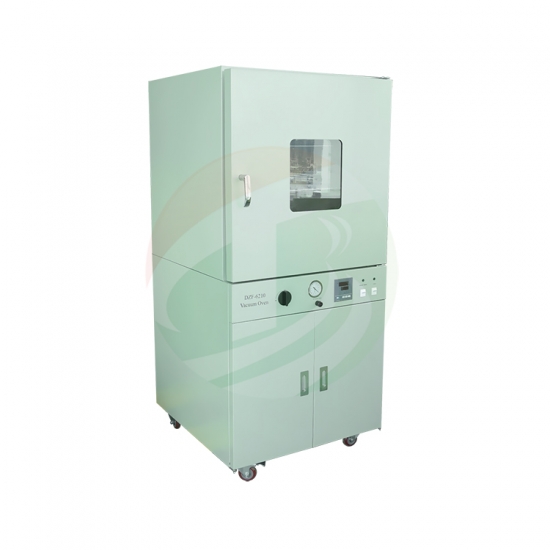

TOB TOB-DZF-6210 真空脱气炉 (200L 250℃)

Source voltage: 110V/AC  or  220V/AC +/-10% selectable

Power: 4500W

Temperature Range: RT + 10~250℃

Temperature fluctuation: ± 0.5℃

Vacuum degree: -0.1Mpa (≤133Pa), with Medical vacuum gauge pointer type

Inner box size (W*D*H): 560 * 640 * 600mm

Dimension (L*W*H): 720 * 820 * 1750mm

Temperature controller

High precision microcomputer temperature controller, accurate temperature control

Working temperature can be set and working time can be set for 0-9999min.

When time reach, sound alarm, and when any error, also alarm function

Heating mode: Peripheral radiant heating.Electric heating tube is located in the tank of the lateral walls, close to the tank

Inner box material: 304 stainless steel

Outside shell material: High quality cold-rolled steel plate electrostatic spray

Box door: Toughened bulletproof double glass door

Safety device: With over temperature protection, grounding etc

Shelf: 3pcs stainless steel mesh shelves

Vacuum pump: 2XZ-4 Rotary vane vacuum pump, Vacuum flow 4L/S in bottom
