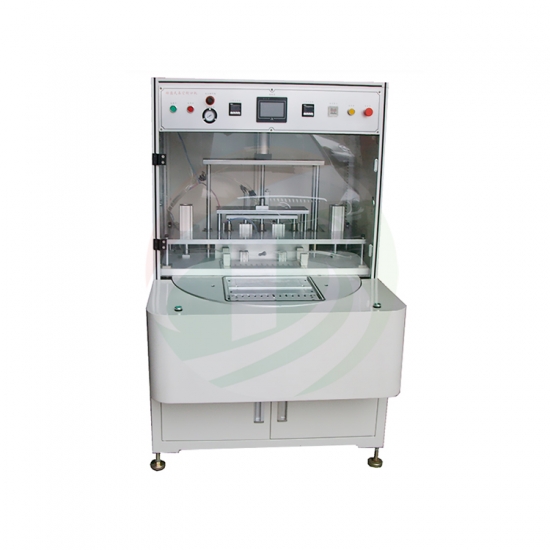

TOB TOB-EF-350 Turntable Type Vacuum Seal Machine For Polymer Battery (≤-0.095MPa)

Type: Turntable type

Source voltage: AC 220V, 50HZ, Customized as request

Power: 1800W

Air compression: 0.6-0.7MPa

Vacuum degree: ≤-0.095MPa

Size (L*W*H):  900*1000*1600mm

Weight: About 700kg

Suitable battery size with air bag: 350*250*15mm

Sealing head length: ≤350mm

Sealing stamp width: 6mm (customized)

Sealing thickness: 0.1-0.35mm

Sealing temperature: RT-250℃ adjustable, Accuracy ±2°

Sealing time: 1-99s, adjustable

Vacuum sealing time: 1-99s,adjustable

Depth of parallelism for sealing head: ±0.01mm
