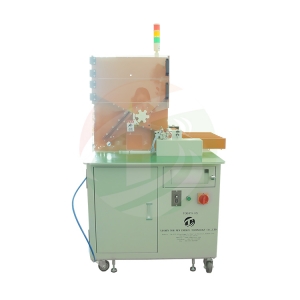

TOB TOB-FX-05 电池分选机自动分选机 (0-6V,0mΩ-999.9mΩ)

Voltage supply: 220V/50HZ(or can be customized)

Power: 1.6kw

Air Pressure: 0.4-0.8Mpa

Display screen: 7.5 inch touch screen, 3-axis PLC programmer

Suitable for: 18650 battery

Receiving channel: 6 channel, 5 sorting and matching channel,1 unqualified channel

Internal resistance setting: 0mΩ-999.9 mΩ

Voltage setting: 0-6V

Weight: <200KG

Code sweeping function: No, can be customized

Production efficiency

Without code sweeping, about 5000pcs/h

With code sweeping, about 3000pcs/h

Feeding: By hopper, 500pcs cells one time

External connection: Customizable automatic connection padding machine

Tester

Standard tester: HOPETECH HK3560

High speed tester

Voltage accuracy 0.00005V

Internal resistance precision 0.01 mΩ

Package size: L1150*W930*H1390mm

Weight: About 250kg
