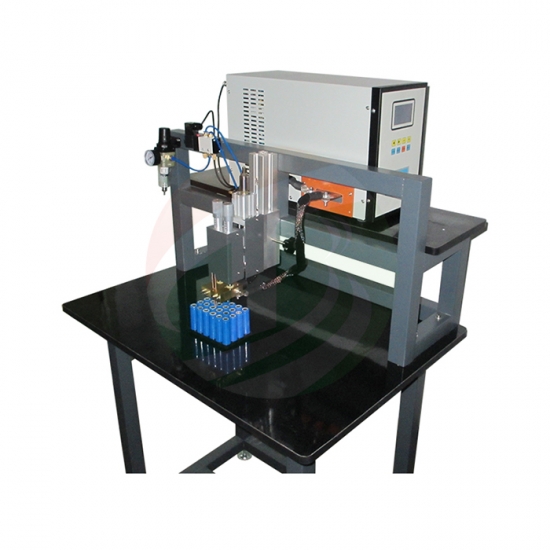

TOB TOB-HDP-3000 Cylindrical Battery Pack Welding Machine

Transformer maximum output  power: 25KVA

Two sides of the maximum welding current: 6000A

DC energy storage capacity: 6600uF

Welding pulse number: 9 sets of pulses

Welding voltage: 5v-330v adjustable, precision 0.5V

welding time: 0.1ms-5.0msdjustable, precision 0.1ms

Welding mode: Normal / continuous

input frequency: AC 220V±10% 50Hz±2Hz

Maximum working pressure: 6KG

Weight: 65KG

Weld thickness: Maximum thickness of parallel welding:0.03mm~0.5mm, Multiple welding sheet
