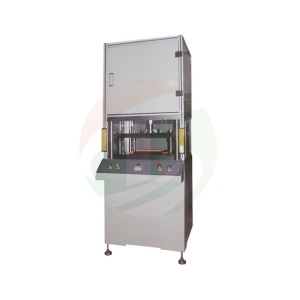

TOB TOB-JD-500 电池电极切割机 (500*500mm)

Work voltage: AC110V/220V, 50/60HZ

Power: 500W

Max cutter die size: 500mm(L) * 500mm(W)

Die Set Dimensions

One set of standard electrode die is included.within the dimensions:500mm(L) *500mm(W) Customized size die is available upon request

Safety Protection: Built in Safety Curtain to protect against hand injuires during electrode feeding Double start press button

Cutting Accuracy: ±0.1mm

Air Cylinder: 5 tons Max. pressure

Feeding: Manually

Production Yield: 100-400 pieces of electrodes per hour According to battery sheet size

Air Pressure: 0.6-0.7Mpa, 40L/S

Dimension (L*W*H): 1000*760* 2160mm

Net Weight: 1000kg
