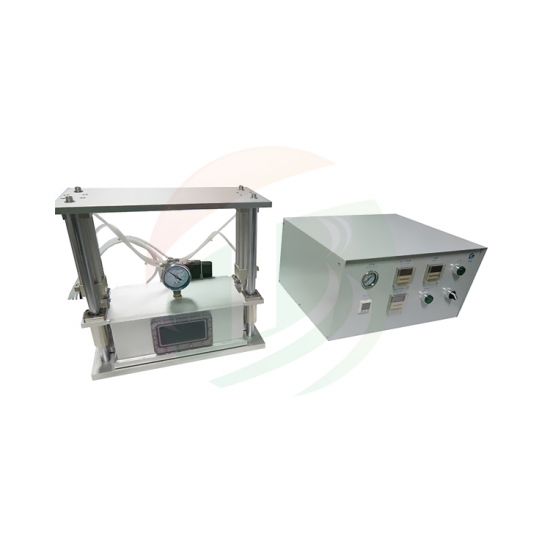

TOB TOB-JZ300-S Smaller Vacuum Holding Box For Battery Research (100W, 0.5-0.8Mpa)

  • 制造商: TOB
    Model: TOB-JZ300-S
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Power Supply: 110-240 V, Single Phase 50/60Hz

Max. Power: 100W

Compress Air: 0.5-0.8Mpa

Inner Chamber Size (L*W*H): 290*110*170mm, Can customize the size according to glove box size

Chamber Body: 12mm thick Aluminum case with observation window

Vacuum Level

Vacuum condition remains stable,

vacuum degree and vacuum circulation times can be set independently

Vacuum mode (once or twice) can be selected

Easy program setting for specific vacuum condition

Vacuum degree can up to -95kpa, with good sealing,

can guarantee 1 minute air leakage is not more than 0.01 MPa

Vacuum Condition Hold Time: 0 - 9999 sec, adjustable

Product Dimensions (L*W*H)

Vacuum Box: 430*230* 370mm

Control Unit: 470*450*250mm

Application Notes: Please choose the vacuum pre-sealing machine and vacuum pump together for immediately use

Net Weight: 40 kg
