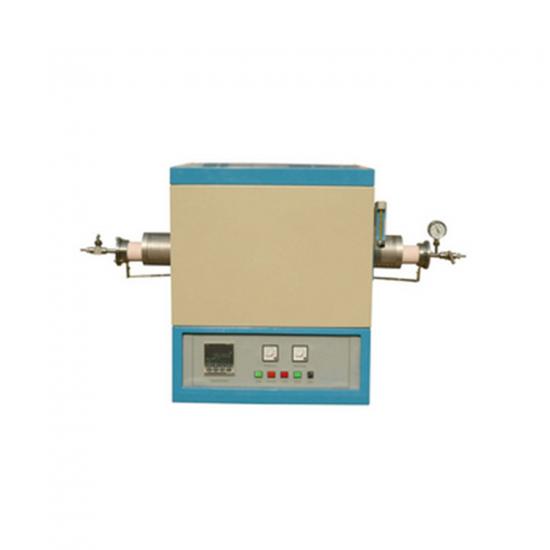

TOB TOB-KTL1400-IV 卧式管型炉 (1400℃,6KW)

Tube size: Φ100×1000mm

Power: 4 KW

Dimension (L*W*H): 650×500×700

Voltage: AC110V/220V

Heating Zone Length: 260mm

Heating element: Silicon carbide

Temperature controller

40 program temperature control system,

With over temperature, broken accidentally protection function,

6 groups of PID adjustment

Control precision of + / - 1 ℃

Furnace chamber: 1600 type Polycrystal alumina fiber

Tube material: 99 alumina tube

Vacuum Flange & Fitting Ports: Stainless steel flange with Gas nozzle, valve, pressure gauge

Pressure measure system: Pressure gauge (Resistance vacuum gauge can be chosen according requirements)

Air intake control: Flow meter (Protons flow controller can be chosen according requirements )

Vacuum system: Vacuum pump can be chosen
