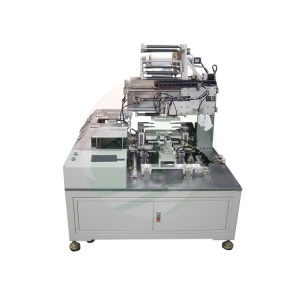

TOB TOB-L-DP200 半自动电池堆放器

Dimensions: 1450mm (L) × 1100mm (W) × 1600mm (H)

Power supply: 220 VAC ± 5%, single phase, 0.5 KW

Gas source: 5~7 kgf/cm2, 200 l/min

Vacuum source: -0.09MPa, 100 l/min

Stacking accuracy

1) Separator alignment error ± 0.3mm;

2) Electrode alignment error ± 0.3 mm.

Remark: Non-corrosive gases, liquids, explosive gases


Detail

Datasheet


2.1 Specification of materials



Materials

thickness

Width

Length(Include tab)

Exposed Length of tab

1

Cathode electrode

0.09~0.2

40~160

40~250

≤30

2

Anode electrode

0.09~0.2

40~160

40~250

≤30

Materials

Thickness

Width

Inside diameter

Outside diameter

4

Separator

0.020~0.040

40~130

φ76.2

≤φ300

3 Stacking Process

Battery cell specification

Unit:mm

Specification

Dimension

Specific value

Length H

40~250



Width W

40~160



Thickness T

5~30



Exposed tab length P

≤30
