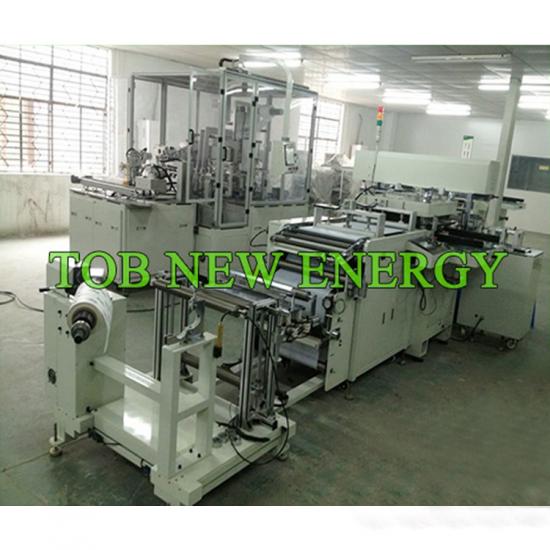

TOB TOB-LPC520 高精度自动定型机 (520mm )

Forming speed: 20-30 punching  per minute.

Maximum electrode width: 520mm (actual maximum 540mm)

The largest size electrode forming: 500mm*500mm

Electrode thickness: 0.06 ~ 0.25mm

Cutter life: about 30,000 times

Forming burr: ≤0.015mm

After punching the edges dusting: ≤0.15 mm

PET conveyor belt life: recycling approximately 10,000~30,000 times

Electrode box size: according to customer-supplied

Failure rate of the device: ≤5% (only caused by the equipment failure)

Power: required 6.0KW

Voltage: AC380V ± 10%

Air pressure required: 0.5 ~ 0.7Mpa

Vacuum required: -90Kpa ~ -60Kpa

Weigh: 4000KG

Dimension: (approx) length: 4300MM * Width: 2000MM * High: 1850MM
