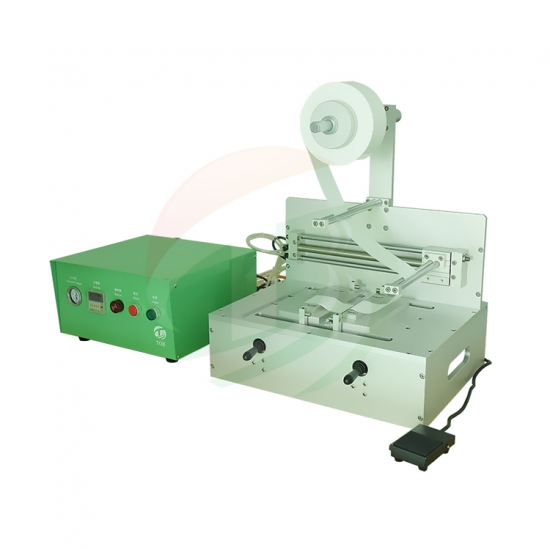

TOB TOB-M-DP-200 电池堆放器

Voltage supply: AC 110v-220V Customized by requirements, 50HZ±10%

Power: 100W

Stacking Layer Length: L(0-200)mm, W(0-200)mm

Max separator feeding diameter: Φ250mm

Fixed travel distance: 400mm

Travel cycle: 1 - 9999 cycles

Air supply: 0.25-0.55MPa (40 - 80 psi)

Machine dimension(L*W*H): 650*400*700mm

Controller dimension(L*W*H): 200*300*380mm

Weight: 40kg

Package size for stacking machine: 660*740*430mm

Package size for control box: 470*330*520mm
