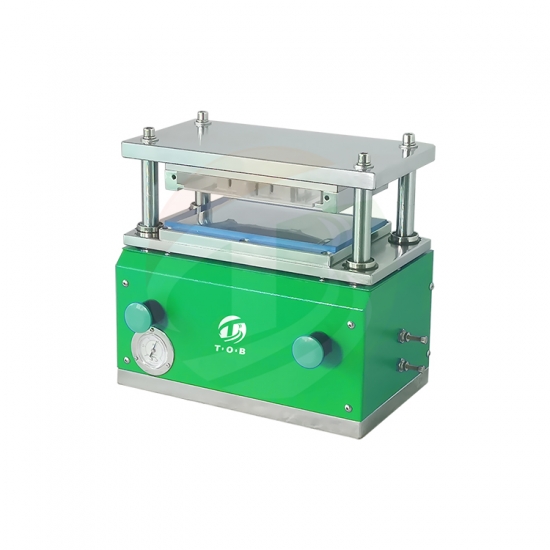

TOB TOB-MCP85 电池电极气动切割机(0.5MPa)

Vertical burr: ≤12μm

Horizontal burr: ≤20μm

Max punching size: L85*W65mm(can be customized according to requirements)

Punching accuracy: ±0.1mm

Punching pressure

Max. 1T (0.5MPa compressed air)

Punching the battery electrode recommended pressure 500Kg

Stroke: 35mm

Compressed air

0.5MPa

If placed in a glove box, the gas used is the same as that used in the glove box.

Dimension(L*W*H): 350*230*300mm

Weight: 32kg

Details

Datasheet


Main features:

Sheet type electrode feeding, knife template for die cutting, can be placed in the glove box.

Easy to replace the cutter.

Long die life, normal use≥30,000 times.

No quality defects such as burrs, powder drop, and indentation.

Adopts four pillar structures, up and down slip smooth and high precision.

Exquisite appearance, easy to operate, safe and reliable, small size.
