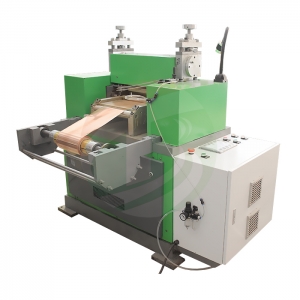

TOB TOB-MEF300 Metal Expanding And Flattening Machine

Expanding machine

Impact times: 1200/min

Feed width: 0-0.3mm

Mesh long intercept: 1-2mm

Dimension: 800×600×1250 mm

Punching material thickness: 0.03-0.5mm

Max punching width: 260mm

Power: 3.0KW

Weight: 1T

Flattening machine

Speed: 10meter/min

Feed width: 260mm

Max product width: <1mm

Dimension: 500×500×1200 mm

Roller diameter: 140mm

Power: 2.0KW

Weight: 0.6T

Roller material: GR12

Roller hardness: 62 degree

Detail

Datasheet
