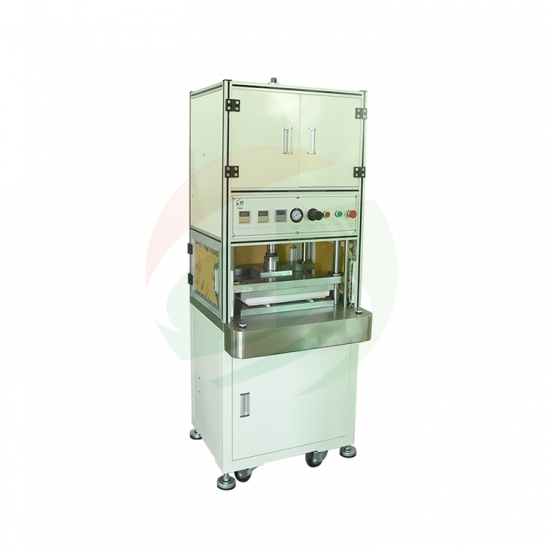

TOB TOB-MQ-400 半自动电池电极切割机 (400*300mm)

Work voltage: AC110V/220V, 50/60HZ

Power: 500W

Max cutter die size: 400mm(L) * 300mm(W)

Die Set Dimensions

One set of standard electrode die is included within the dimensions:400mm(L) *300mm(W)

Customized size die is available upon request

Safety Protection

Built in Safety Curtain to protect against hand injuires during electrode feedin

Double start press buttong

Cutting Accuracy: ±0.1mm

Air Cylinder: 5 tons Max. pressure

Cutting stroke: 250mm

Feeding: Manually

Production Yield: 100-400 pieces of electrodes per hour according to battery sheet size

Air Pressure: 0.6-0.7Mpa,40L/S

Dimension (L*W*H): 1000*760*2160mm

Net Weight: 1000kg
