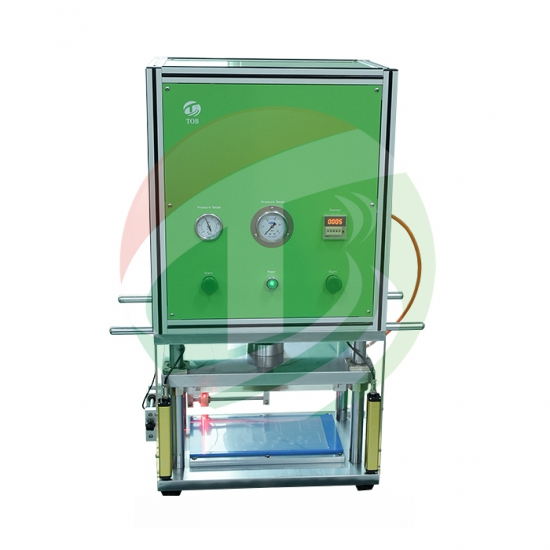

TOB TOB-MQ300 电池电极切割机(200*300mm)

  • 制造商: TOB
    Model: TOB-MQ300
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Work voltage: AC110V/220V, 50/60HZ

Power: 100W

Max cutter die size: 200mm(L) * 300mm(W)

Die Set Dimensions

One set of standard electrode die is included.within the dimensions:400mm(L) *300mm(W)

Customized size die is available upon request

Safety Protection: Built in Safety Curtain to protect against hand injuries during electrode feeding Double start press button

Cutting Accuracy: ±0.1mm

Air Cylinder: 3 tons Max. pressure

Tensile Cylinder: 0.15 tons pressure

Cutting stroke: 250mm

Feeding: Manually

Production Yield: 800 - 2000 pieces of electrodes per hour

Air Pressure: 0.5-0.8Mpa

Dimension (L*W*H): 580*455* 900mm

Net Weight: 120kg (265 lbs)

Shipping Dimensions: 47*75*109cm
