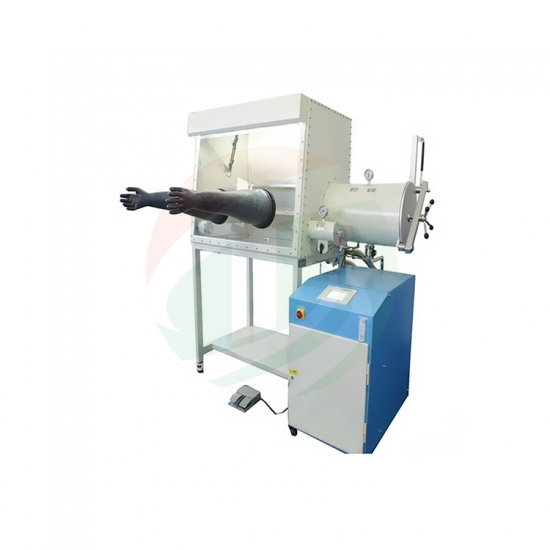

TOB TOB-MRX-1220 无菌操作柜 (-2500~2500 Pa)

Working Voltage: 110-220V AC, 50/60Hz, Single Phase

Glove Box Chamber

Case Material: Stainless Steel 304 with 3mm thickness

Dimensions: 1220mm(L) x 760mm(W) x 900mm(H)

Removable Front Window Panel

Chamber Condition

Water concentration: <1 ppm (20°C, 1 atm)

Oxygen concentration: <1 ppm (20°C, 1 atm)

Leak rate: <0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)

Air-lock Chamber

Antechamber Dimensions: 360mm(Dia.) x 600mm(L)

Small Chamber Dimensions (for tools): 150 mm(Dia.) x 300mm(L)

Working Gas

Operating gas: Inert gas such as N2, Ar, He

Regenerating gas: Mixture of H2 (5-10%) and Operating gas

For purification system with only water adsorbing function,

Regenerating gas will be the same as Operating gas

Gas Purification System

Automated Regeneration Process

Automated water and oxygen removal

Filter System: Inlet and Outlet filter can eliminate particle size > 0.3μm

Pressure Control System

Automatic pressure control by PLC for the Glove Box Chamber

Pressure Range: +/- 12mbar

Manual pressure control is allowed via a foot pedal

Purging System: Automatic Purging System allows easy operating and reduce gas consumption

Control system

Siemens PLC control system with 6" touch screen display

Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm

Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm

Pressure: -2500 to 2500 Pa with an accuracy of 1 Pa

Data: Automatic system data logging

Pump: England RV-8 EDWARDS pump is included for faster vacuum and removing moisture

Vacuum rate: 8 m^3/hr

Purification Pipeline: 304 Stainless Steel, KF40 and KF25 Port

Gloves: A pair of 9 3/4" butyl glove is included for immediate use

Lighting: Built in fluorescent lamp

Product Dimensions: 2300mm(L) x 1500mm(W) x 1900mm(H) (91" x 59" x 75")
