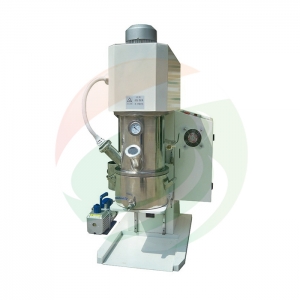

TOB TOB-PVM-5L 真空搅拌机 (5L)

Source voltage: AC 220V/110V, 50HZ/60HZ

Power: 3500W

Rotation speed: 0-1400 r/min, Through the inverter speed control

Revolution speed: 0-70r/min

Effective volume: 5L, 1-10 Liters Customized according request

Design volume: 9L

Mixing barrel opening mode: Deceleration motor driven fill rises

Mixing barrel size: Φ260mm(Diameter)*180mm(Hight)

Mixing time set: 0-99H can be set, auto stop when finish with vacuum

Weight: About 150kg

Dimension (H*L*W): 1300 * 1100 * 700mm, 51″ * 43″ * 27.5″


Detail

Datasheet


Advantage

5 liters 304 stainless steel container with high accuracy

Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.

Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation

Programmable controller to set time, speed, rotation direction.

With time and temperature setting function

Double blade design, make the material up and down around, mixing battery paste rapidly
