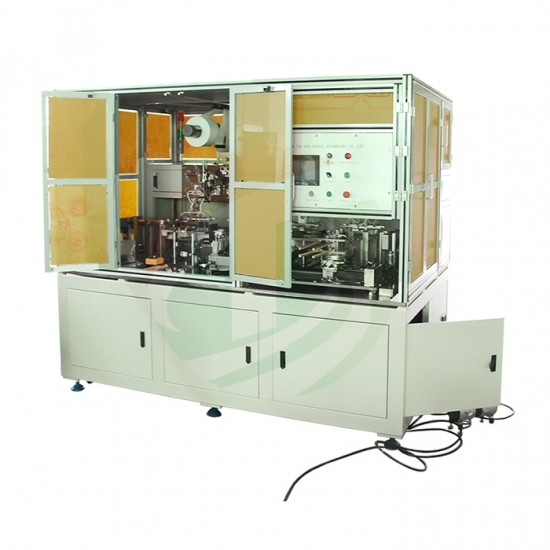

TOB TOB-S-DP-150 半自动电池层压机

Suitable battery size

Thickness H (mm): 5-20

Width W (mm): 30-90

Length L (mm): 80-150

Tab length Q (mm): Q≤20

Tab width (mm): ≤20

Technology parameter

Stacking speed: 1.3-1.5s/pcs

Registration accuracy: ±0.5mm

Stacking quantity: Can be set

Percent of pass: ≥98%

Power: 4kw

Weight: 800kg

Dimension (L*W*H): 1250*1150*1850mm

Materials size

Electrode

Length: 80-150mm

Width: 30-90mm

Thickness: 0.07-0.25mm

Tab

Length: ≤20mm

Width: 8-20mm

Separator

Length: in roll

Width: 90-150mm

Thickness: 0.02-0.04mm

Inner diameter: φ76.2mm

Max out diameter: φ300
