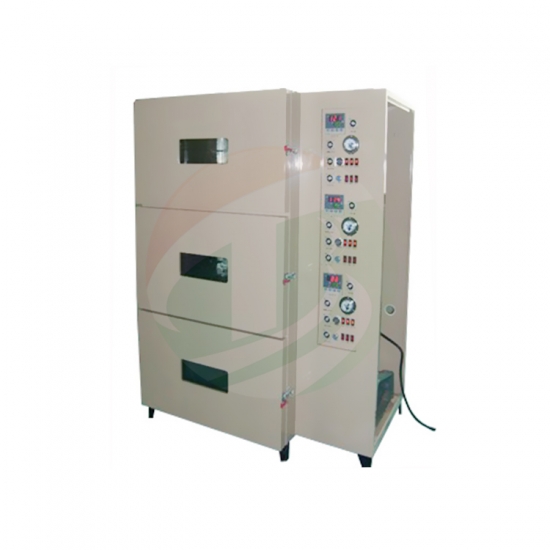

TOB TOB-SBVO-03AP 锂电池自动真空烘箱 (200 ℃, 3 层)

Source voltage: AC 380V, Three phase 4 wires, 50HZ

Power: 4.5kw*3, three layers

Max current: 20A

Working chamber dimension (H*W*D) : 300 * 800 * 600mm * 3layers

Insulation layer thickness: 90mm Aluminum silicate fibers

Working temperature: Nichrome wire heated mode, RT + 15℃~200℃, With accuracy ± 1℃

Temperature control mode: PID adjustment, Intelligent digital display temperature controller

Vacuum degree: ≤ 100pa

Inner box materials: 3mm SUS304 Stainless steel

Outside shell materials: 1.5mm thickness cold-roll steel sheets

Structure

Three working chamber with one vacuum hole, controlled by hand separately

Open door mode : Three single door, with square observe window

With Air switch, over current protection, Over temperature protection.
