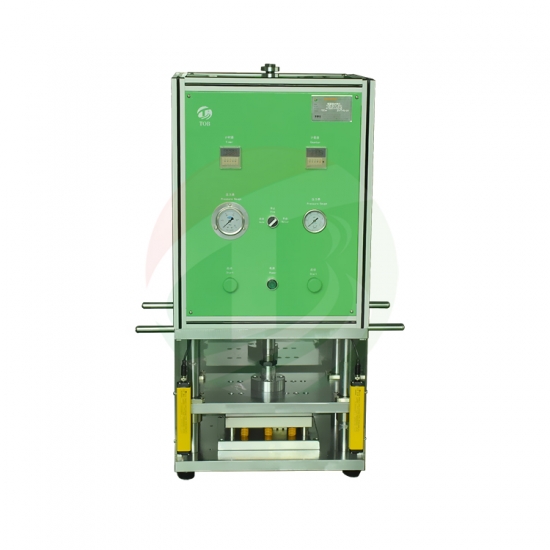

TOB TOB-SCK300 电池造型机，适用锂电池 (300*280mm)
制造商: TOB Model: TOB-SCK300 来源: China 保障: 12 Month - 报价要求
- 报价要求
- 联系
Source voltage: AC 220V, 50HZ
Power: 100W
Suitable aluminum film size: 300*280mm(L*W), customized, with punching depth ≤6mm
Max. Cup Depth to Punch: Single pit punching depth ≤6mm
Output: 100-200EA/H
Output pressure: 5T
Air source: 0.5-0.7MPa
Dimension(L*W*H): 560*420*925mm
Weight: About 250 kg
Mold part
Mold/core roughness: 0.4(mirror reflection)
Upper and lower die flatness: 0.02mm
Core flatness: 0.02mm
