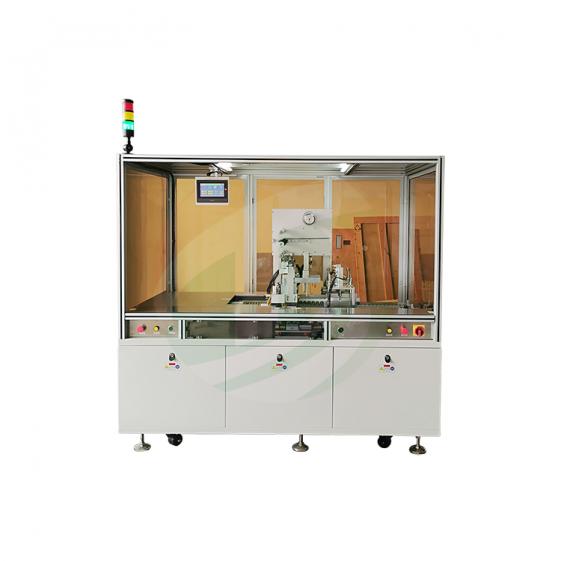

TOB TOB-SFCA-220 棱镜铝壳电池PET薄膜包装机 (1KW)

Power supply

AC220V，50Hz,+10%～-10%；

Total power 1KW.

Compressed air： 0.6MPa～0.8MPa ±1% (Clean air after dewatering, oil free, filtration and voltage stabilization)

Equipment

weight ：about 400kg

dimension ：L（1.53m）＊W（0.98m）＊H（1.83m）

Environmental requirement

Temperature : 25±5℃

Humidity: 30%～75%RCH, Ensure that the air is dry and free from acid-base corrosion

Must grounding

Technology parameter

Joint blister≤2mm*3mm

The side blister≤2mm*5mm

Adjustable overlap:5mm～10mm

Efficiency :200pcs/h

Operator 1people

Product qualification rate : ≥98%

Suitable battery size: Height :120～220mm * Width :100～180mm * Thickness : 20mm～60mm
