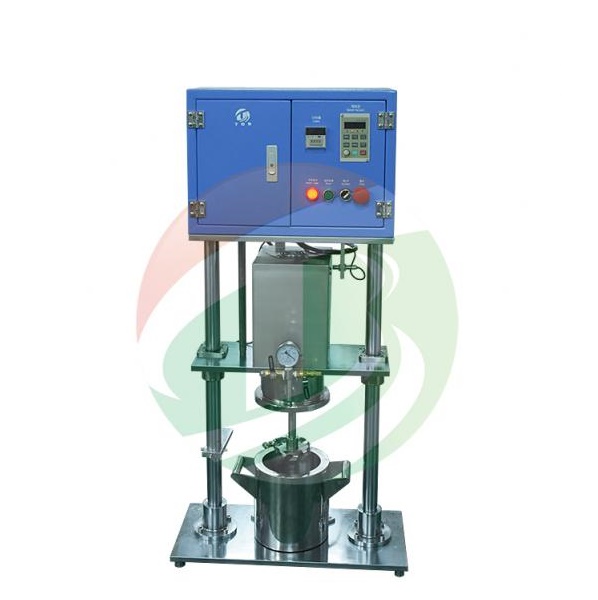

TOB TOB-SFM-6E-5L 真空混合器 (1-5 L)

Voltage: 110-240V AC single Phase, 50/60Hz (build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz)

Rate Power: 750 W

Rotor Rod Speed: 0 -1400 RPM variable

Lifting: Electric motor ( no compress are pump required any more )

Water Requirement

16 L/min water flow required to cool mixing tank

Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket)

Suggest you order recirculating water chiller by click picture picture left to save water

(water chiller is not included)

Vacuum Pump

Double Step Rotary Vane Vacuum Pump, is included

Vacuum gauge is built in with minimum vacuum level -0.1 MPa

304SS Container Size: 270mm O.D. x 210mm I.D. x 230mm H

Dimensions: 580mm(L) x 320mm(W) x 1340mm(H)

Net Weight: 119 kg (262 lbs)




5 liter 304 stainless steel container with double layer water cooling jacket.

Advanced T type sealing to keep vacuum pressure up to 12 hours.

Double Step Rotary Vane Vacuum Pump, is included for immediate operation

Container is opened or closed by electric motor (no air pump is required any more)

Programmable controller to set time, speed, rotation direction.
