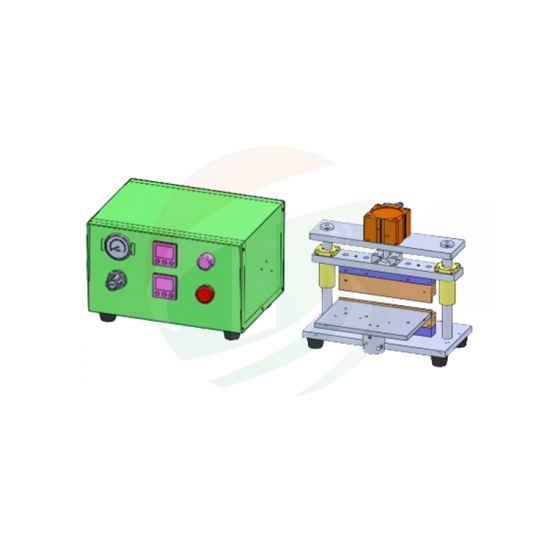

TOB TOB-SFZ-200-S 手套箱小型电池热封机 (≥ 5kg/cm2)

Voltage supply: 110/220V 50/60Hz Single Phase

Power: 800W

Compressed air: ≥ 5kg/cm2

Suitable battery size: Top sealing ≤200mm, Side sealing ≤200mm

Sealing head length: 200mm, Customized

Sealing thickness: 0.17-0.3mm

Sealing stamp width: 6mm (Can be customized upon request without extra charger)

Sealing pressure: 0.5- 0.7 MPa (0 - 99 psi) adjustable

Sealing temperature: RT-250℃, adjustable with controlling accuracy +/-2 °C

Sealing time: 0-99s adjustable

Sealing blade type

Soft sealing blade

(Copper sealing blade with aluminum and  Silicone rubber piece,

good for Al film case sealing and case with tab in between,

suitable for both top sealing and side sealing)

Dimension(L*W*H): Working : 315*150*290mm

Controller : 320*240*220mm

Weight: 40kg
