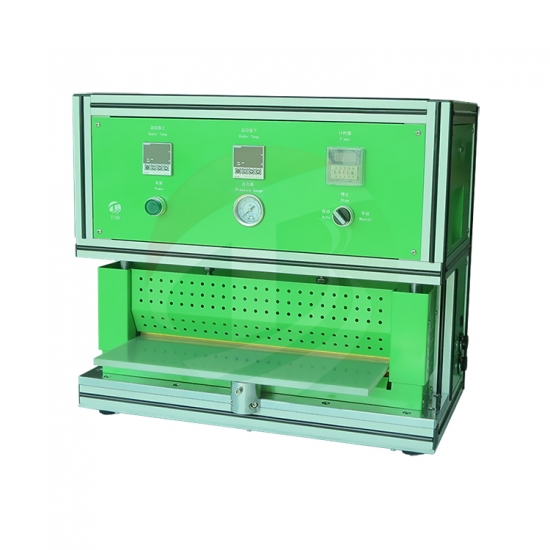

TOB TOB-SFZ-400 电池密封器 (400mm)

Voltage supply: 110/220V 50/60Hz Single Phase

Power: 600W

Compressed air: ≥ 6kg/cm2

Suitable battery size: Top sealing ≤400mm, Side sealing ≤400mm

Sealing head length: 400mm, Customized

Sealing thickness: 0.15-0.3mm

Sealing stamp width: 6mm (Can be customized upon request without extra charger)

Sealing pressure: 0.5- 0.7 MPa (0 - 99 psi) adjustable

Sealing temperature: RT-250℃, adjustable with controlling accuracy +/-2 °C

Sealing time: 0-99s adjustable

Sealing blade type: Soft sealing blade

Dimension(L*W*H): 330*550*500mm

Weight: 60kg

Package size (L*W*H): 390*650*700mm

Package weight: 70kg
