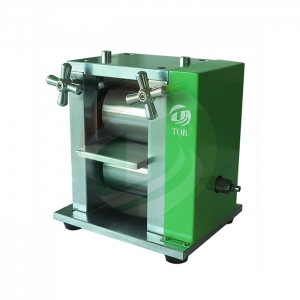

TOB TOB-SG-100L 电动辊压机 100mm Width (4" (100mm))

Structure

Heavy duty steel frame, gears and handle

Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60) with Cr electroplated coating

Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum

Roller

Dimensions: 96mm (Dia.) x 100mm (W)

Material: Made from hardened tool steel (HRC > 60) with Cr electroplated coating. With finish  > 0.8

Rolling press accuracy: ≤ ± 0.005

Rolling press thickness: 0-2mm adjusted with Dial gauge

Rolling press width: Max 100mm

Product Dimensions: 350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")

Weight: 45kg (100 lbs)

Detail

Datasheet


Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.

1, Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2, Coated Rust-proof oil if machine were to be unused for a long period of time

3, The minimum thickness of the rolled sheet should depend on the physical property of the materials.

Here are some results from our test:

Electrode

Size

Original

thickness

Finished thickness

LiFePO4

double sides

50mm Width x 260mm Length

0.205mm

0.09mm

LiMn2O4

double sides

50mm Width x 260mm Length

0.205mm

0.09mm

Copper foil + graphite

(single side)

75mm Width x 240mm Length

0.09mm

0.04mm

Sample testing is available upon customer's request
