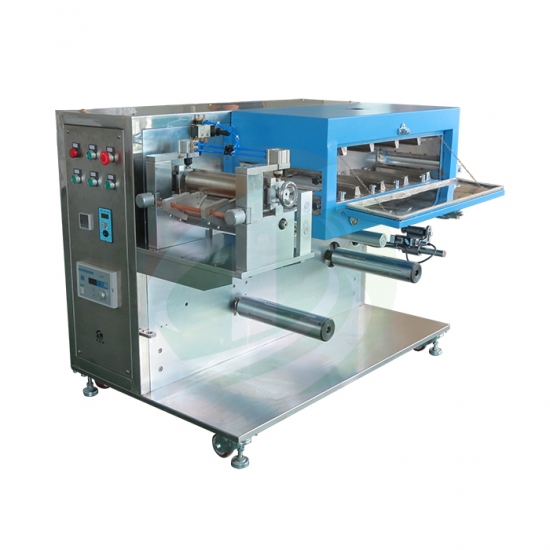

TOB TOB-TBJ-200 电池电极涂布机 (180mm宽度)

  • 制造商: TOB
    Model: TOB-TBJ-200
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Source voltage: AC 110v/220v, 50HZ/60HZ

Power: 3000W

Coating mode: Continuous coating

Max coating width: 180mm

Applicable matrix thickness

Aluminum foil : 11-30um

Copper foil : 8-30um

Mechanical tape speed: ≤ 5m/min, with accuracy ± 0.1m/min

Coating speed: 0-750 mm / minute, adjustable

Coating thickness: 30-200um

Applicable slurry viscosity: 1500-15000cps

Coating roller accuracy: ≤ 1um

Coating accuracy

Double dry thickness accuracy error: < ±4um

Single side dry thickness accuracy error: < ±2um

Double coated alignment error: < ±0.5mm

Average length of error: < ±0.5mm

Roller inner diameter: 3inches

Tension control: Low friction tension system

Struggle to control precision: <±0.3mm

Oven temperature: 120°C adjustable, with accuracy ±1°C, Independent PID adjustable

Oven Length:  800mm

Weight: 450kg

Dimension(L*W*H): 900 * 800 * 900mm

Details

Datasheet
