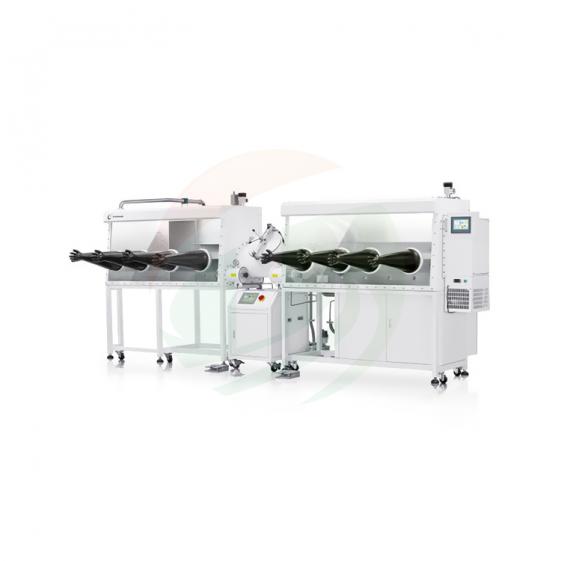

TOB TOB-TGB-3600 4-Position Anaerobic Glove Box For Battery (90m3/h)

- Two 304 stainless steel boxes, 1800mm length, connected by T-shaped bin in the middle, acid resistant, 3mm in thickness

- 1 large transition tank made of stainless steel, 360mm diameter, 600mm length, three doors, located in the middle of two boxes

- One T-shaped small crossover cabin made of stainless steel, with diameter of 150 mm and length of 800 mm, extending to the left and right sides of glove box by 100 mm, three doors, located in the middle of two boxes

- Two large transition tanks made of stainless steel, 360mm in diameter and 600mm in length, are respectively located on the left and right sides of the glove box, and the right large compartment has heating function. The temperature range is 25-200 ± 1 ℃.

- Two small transition tanks made of stainless steel, with diameter of 150 mm and length of 300 mm, respectively on the left and right sides of the glove box

- 2 front windows with 4 glove openings

- 4 pairs of butyl rubber gloves

- 2 sets of lighting system

- 2 power lines in the box

- 16 spare kf40 interfaces

- Two high performance circulating fans 90m3 / h

- 2 vacuum pumps, RV8

- 2 sets of water analyzers

- 2 sets of oxygen analyzer

- 2 sets of organic solvent adsorbers

- 2 sets of hydrofluoric acid removal devices

- Bracket casters

- Foot switch
